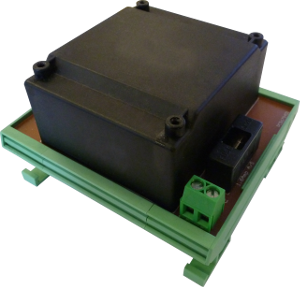

<< | < | AX-TX-D - 230Vac to 24Vac Din Rail Transformers
|
| |
|
The AX-TX-D is a range of low cost DIN rail mounted encapsulated power transformers that is designed to suit many applications. The units are normally used to provide power for DDC Controllers, IO modules, or valves /damper actuators. The transformers are fitted with fuses on both the input and output. |
Product Features
| • Rising Clamp Terminal blocks
• Rating 1.8, 6, 12, 25, or 30VA
| • Integral Fuses on input and output
• DIN rail mounted
|
Input
| 230Vac
| Output Supply
| 24Vac
| Output Rating
| 1.8VA, 6VA, 12VA, 25VA, or 30VA
| Typical Regulation
| 25%
| Fuse Rating
| 1.8VA, Input 0.25A, Output 0.25A
|
| 6VA, Input 1A, Output 1A
|
| 12VA, Input 1A, Output 1A
|
| 25 and 30VA, Input 1A, Output 1.6A
|
| 60VA, Input 1A, Output 1.6A
| Fuse Size
| 20mm
| Electrical Connections
| Terminals for 0.5 to 2.5mm2 cable
| Ambient Temp. Range
| -10°C to +50°C, 0-95% RH
| Dimensions
| 1.8VA, 82 x 34 x 58mm
|
| 6VA, 82 x 58 x 52mm
|
| 12VA, 25VA and 30VA, 82 x 92 x 52mm
|
| 60VA, 86 x 105 x 62mm
| Country of Origin
| United Kingdom
|
