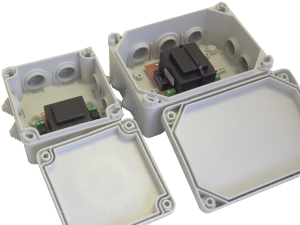

<< | < | AX-TX-E - 230Vac to 24Vac Enclosed Transformers
|
| |
|
The AX-TX-E is a range of 230/24Vac power transformers supplied in IP55 enclosures. Fuses are incorporated on the input and output connections. |
Product Features
| • Rising Clamp Terminal blocks
• Ratings of 6VA and 12VA available
| • Integral Fuses on input and output
• IP55 Enclosure
|
Input
| 230Vac
| Output Supply
| 24Vac
| Output Rating
| 6VA or 12VA
| Typical Regulation
| 6VA, 25%
|
| 12VA, 18%
| Fuse Rating
| 6VA, Input 250mA, Output 315mA
|
| 12VA, Input 250mA, Output 1A
| Fuse Size
| 20mm
| Electrical Connections
| Terminals for 0.5 to 2.5mm2 cable
| Ambient Temp. Range
| -10°C to +50°C, 0-95% RH
| Dimensions
| 6VA, 113 x 113 x 58mm
|
| 12VA, 25VA and 30VA, 164 x 119 x 77mm
| Enclosure
| IP55 Protection, Flame Retardant Polypropylene
| Country of Origin
| United Kingdom
|
| AX-TX-E.pdf / 230Vac to 24Vac Transformers in Enclosures |  |
|
|
|
