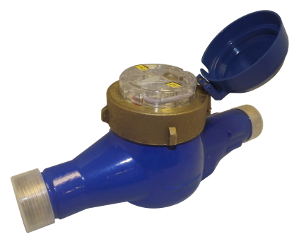

<< | < | AX-WM-MJ - Multijet Water Meters - Hot and Cold Water
|
| |
|
The AX-WM-MJ is a range of cold and hot multi-jet water meters. The multijet impellers are mounted perpendicular to the flow and the speed of rotation increases in proportion to the water flow rate. The meters use a magnetic transmission system between the impellers and the dial to minimise drag and to enable the dial to be totally sealed from the water supply. All the meters are fitted with a pulsed output reed switch allowing flow information to be fed into an Integrator or a BMS system |
Product Features
| • Hot and Cold Water versions available
• Inbuilt water Strainer
• Dry Dial
• EEC Class B approved
| • Working Pressure 16 Bar
• Reed switch pulse output
• Complete with fittings
• Cold water meters suitable for drinking water
|
Body Material
| Powdered epoxy coated brass
| Max Working Pressure
| 16 Bar
| Switch Type
| Reed switch - volt free
| Pulse Value (per litre)
| 1, 10 or 100 dependant on size
| Pulse Interval
| 1mSec including bounce
| Max Contact Rating
| 2VA dc
| Max Load Current
| 50mA
| Max Switching Voltage
| 30Vdc
| Fluid Temperature Range
| Cold 0 to 50 deg C (ice free)
|
| Hot 0 to 90 deg C (ice free)
| Protection
| IP67
| Expected Life Span
| Typically 1-2 million cycles
| Conformity
| EEC Class B approved
| Country of Origin
| Germany
|
