<< | < | AX-WM-WO - Flanged Water Meters - Hot and Cold Water
|
| |
|

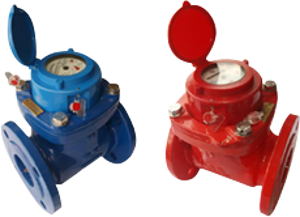

The AX-WM-WO is a range of cold and hot flanged turbine water meters. These meters have in-line turbine impellers and the speed of rotation increases in proportion to the water flow rate. The meters use a magnetic transmission system between the impellers and the dial to minimise drag and to enable the dial to be totally sealed from the water supply. All the meters are fitted with a pulsed output reed switch allowing flow information to be fed into an Integrator or a BMS system. |
Product Features
| • Hot and Cold Water versions available
• Inbuilt water Strainer
• Dry Dial
• EEC Class B approved
| • Working Pressure 16 Bar
• Reed switch pulse output
• Complete with fittings
• Cold water meters suitable for drinking water
|
Body Material
| Cast Iron - Epoxy powder coated
| Max Working Pressure
| 16 Bar
| Switch Type
| Reed switch - volt free
| Pulse Value (per litre)
| 10, 100, 1000 or 10000 dependant on size
| Pulse Interval
| 1mSec including bounce
| Fluid Temperature Range
| Cold 0 to 50 deg C (ice free)
|
| Hot 0 to 90 deg C (ice free)
|
| (upto 120 deg C version also available)
| Protection
| IP67
| Expected Life Span
| Typically 1-2 million cycles
| Conformity
| EEC Class B approved
| Country of Origin
| EU
|
| AX-WM-WO.pdf / Flanged Water Meters - Hot and Cold Water |  |
|
|
|
