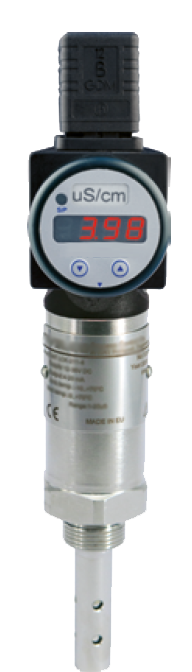

<< | < | AX-ANA-LCK - Conductivity Sensor
|
| |
|
|
TheAX-ANA-LCK-xxx is anAnalytical sensor for themeasurement the Conductivity of a liquid and convert the input signal to 4-20mA. THey are suitable for measuring clean, non crystallisable liquids. Two probes are immersed into themeasured liquid.THe distance betweeen the probes and their surface define the cell constant (K) of the instrument. The cell constant defines the measuring range and thus the application area. |
Product Features
| • 3Measuring Ranges
• Optional plug in display
| • 4-20mA,Hart output
• Variety of probes available
|
Measuring Range
| 1us/cm to 20us/cm, 10 to 200us/cm, 100 to 2000us/cm
| Measurement error
| Typically 3% +/- 1 digit max 5%
| Measuring Rate
| 300msec, on the display (refreshing rate) 1 sec
| Process Temperature
| -10 to +70 degC
| Power Supply
| 12 to 36Vdc 720mW galvanically isolated, protected against surge transients
| Porbes - LCK-212-X
| 1 uS/cm 20 uS/cm
| Porbes - LCK-222-X
| 10 uS/cm 200 uS/cm
| Porbes - LCK-232-X
| 100 uS/cm 2000 uS/cm
| Output - LCK-2x2-2
| 4-20mA
| Output - LCK-2x2-4
| HART & 4-20mA
| Display (option) PLK-501-2
| Plug inDisplay
| Weatherproof Rating
| IP68 probe IP65 housing
| Process Pressure
| 0-16bar
| Materials Housing
| Stainless steel
| Process Connection
| 1 " BSP 3/4” BSP option at additional cost
| Electromagnetic Compatability
| EN61326 Class B
| Country of Origin
| EU
|
| AX-ANA-LCK.pdf / Analytical sensor -Conductivity |  |
|
|
|
