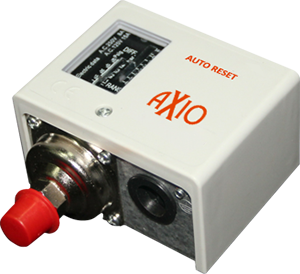

<< | < | AX-LSPS-P - Liquid Static Pressure switches - AXIO
|
| |
|
|
The AX-LSPS-P series offers precise monitoring of flow failures in pumps, chillers, and valves. With adjustable setpoints and differentials, these switches are compatible with fluorinated refrigerants, air, and liquids (-20°C to 120°C) and operate reliably in ambient temperatures from -20°C to 70°C. |
Product Features
| • Adjustable setpoints and differential.
• Compatible with fluorinated refrigerants, air, and liquids.
• Operatable Temperature -20 to 120°C.
| • Ambient working temperature: -20°C to 70°C.
• Mounting brackets included for easy mounting.
• CE Approved.
|
Range
| -0.5 to 30 Bar
| Pressure Connections
| 1/4” BSP
| Max Pressure
| 16.5 Bar for units range = 10 Bar, 33 Bar for unit range = 30 Bar
| Electrical Connection
| Screw Terminals - max conductor size 1.5mm²
| Switch Rating
| Non Inductive Current
| Inductive Current (Full Load)
| 8Amp @ 250Vac
| Inductive Current (Locked Rotor)
| 72Amp @ 250Vac
| Weight
| 0.42 Kg
| Ambient Temperature
| -20°C to 70°C
| Media Temperature
| -20°C to 120°C
| Protection Class
| IP33
| Marking
| CE Approved (According to Low Voltage Directive)
| Material
| Fitting
| Wetted Parts
| Nickel Plated Brass
| Switch Back Plate
| Zinc plated mild steel
| Housing Cover
| Plastic
| Country of Origin
| China
|
| AX-LSPS-P.pdf / Liquid Static Pressure Switches - AXIO |  |
|
|
|
